SAFETY IV CANNULA
It is placed within a vein to provide venous access. Safety IV Cannula has anexclusive safety feature to protect healthcare provider from accidental needle injury.

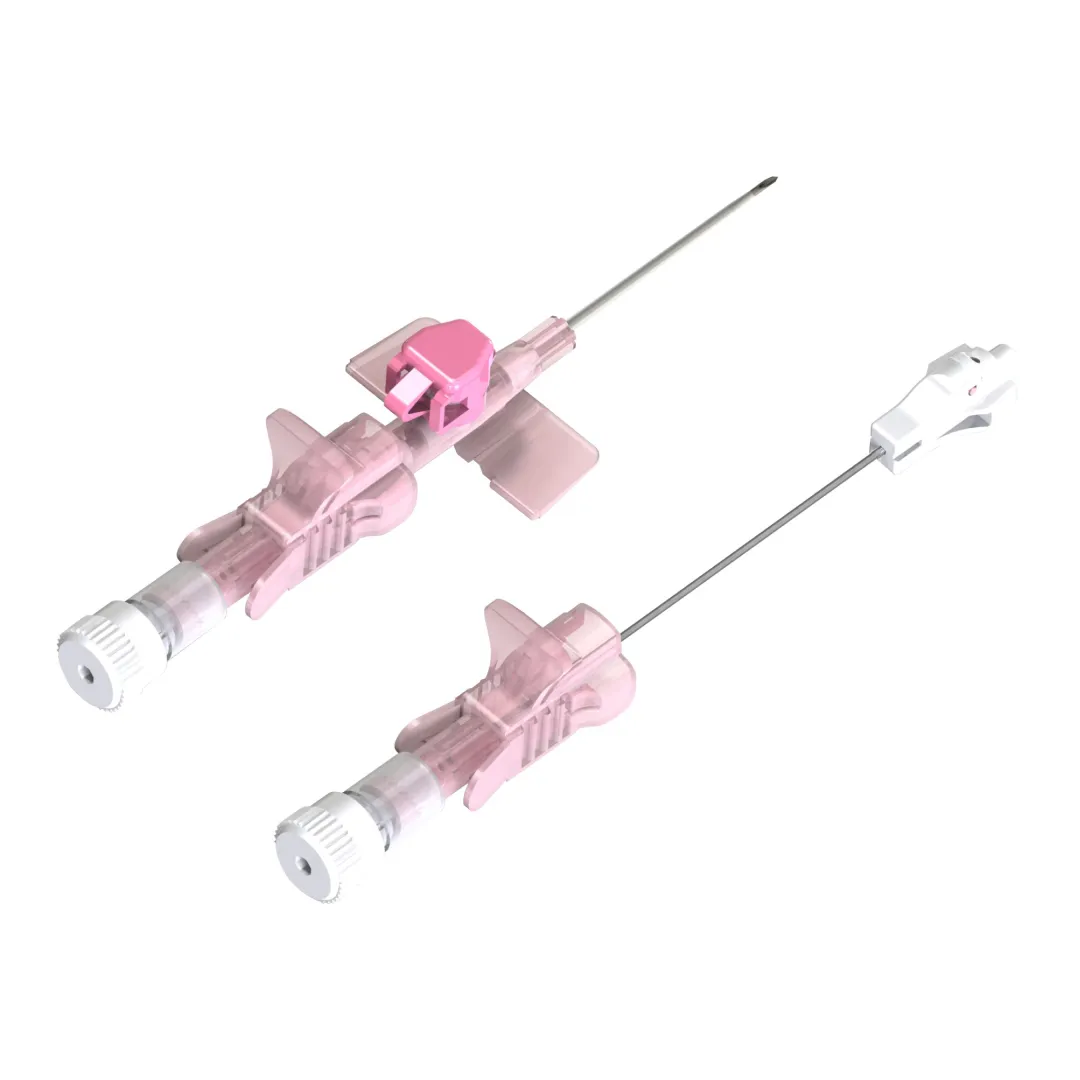

SAFETY I.V.CANNULA WITH INJECTION PORT AND WINGS(MAISSAFE)
Safety I.V. Catheter with injection port & wings has been designed an innovative safety feature which eliminates the risk of accidental needle injuries to the healthcare provider.
TECHNICAL FEATURES:Safety device for complete protection from needle injury.
Specially designed beveled back cut needle offers lower penetration force which is less painful to the patient.
Transparent flashback chamber for conformation of vein penetration.
Specially designed double-hinged cap that incorporates a recessed plug with a protective skirt to prevent contamination when the valve is not being used.
Gauge wise complete body and needle hub are colored for easy identification.
SAFETY I.V.CANNULA WITHOUT INJECTION PORT AND WINGS(MAISWIN SAFE)
Safety I.V. Catheter without injection port & wings has been designed an innovative safety feature which eliminates the risk of accidental needle injuries to the healthcare provider.
TECHNICAL FEATURES:Safety device for complete protection from needle injury.
Specially designed beveled back cut needle offers lower penetration force which is less painful to the patient.
Transparent flashback chamber for conformation of vein penetration.
Specially made up of European catheter and Japanese needles, offer less penetration force.
Complete body and needle hub are colored for easy identification.
Complete body and needle hub are colored for easy identification.
SAFETY I.V. CANNULA WITH INJECTION PORT AND WINGS(SURGIALPHA SAFE)
Safety I.V. Catheter with injection port & wings has been designed an innovative safety feature which eliminates the risk of accidental needle injuries to the healthcare provider.
TECHNICAL FEATURES:Safety device for complete protection from needle injury.
Specially designed beveled back cut needle offers lower penetration force which is less painful to the patient.
Transparent flashback chamber for conformation of vein penetration.
Specially designed double-hinged cap that incorporates a recessed plug with a protective skirt to prevent contamination when the valve is not being used.
Gauge wise complete body and needle hub are colored for easy identification.
PTFE/FEP/PUR/TPU Catheter
With radiopaque lines/ Without radiopaque lines
Hydrophobic filter
Medical grade paper/ Tyvek paper
Different catheter length (14G-26G)
Broad blister packing.
“Intraveno Safe”.
|
Size
|
Colour Code
|
Ext. Dia. mm
|
Catheter Length mm
|
Flow Rate ml./min
|
Packing Inner/Outer
|
|---|---|---|---|---|---|
|
14G
|
Orange
|
2.1
|
45
|
300
|
100/1000
|
|
16G
|
Grey
|
1.7
|
45
|
200
|
100/1000
|
|
17G
|
White
|
1.5
|
45
|
140
|
100/1000
|
|
18G
|
Green
|
1.3
|
45
|
95
|
100/1000
|
|
20G
|
Pink
|
1.1
|
32
|
62
|
100/1000
|
|
22G
|
Blue
|
0.9
|
25
|
33
|
100/1000
|
|
24G
|
Yellow
|
0.7
|
19
|
20
|
100/1000
|
|
26G
|
Violet
|
0.6
|
19
|
15
|
100/1000
|
|
FREQUENTLY ASKED QUESTIONS
Safety Intravenous (IV) Cannula is placed within a vein to provide venous access. It has an exclusive safety feature to protect healthcare provider from accidental needle injury.
It mainly ranges from 14 to 26 gauges. Different-sized cannulas have different color as coded.
It can stay up-to 2-3 days in our body.
It can stay up-to 4-5 days in our body.
