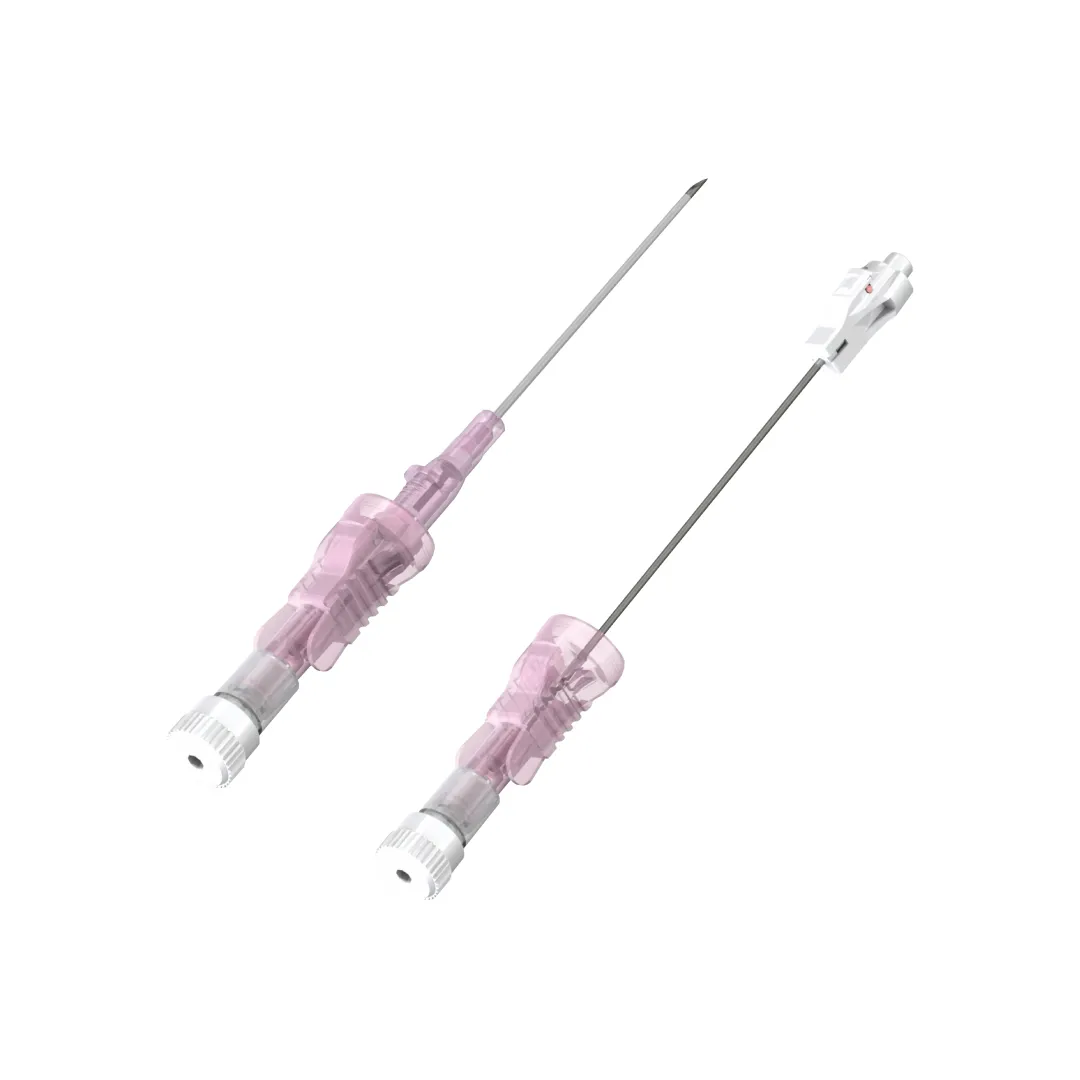

MAISWIN SAFE
SAFETY IV CANNULA WITHOUT INJECTION PORT AND WINGS
Maiswin Safe is without injection port & wings has been designed an innovative safety feature which eliminates the risk of accidental needle injuries to the healthcare provider.
TECHNICAL FEATURES:
- Safety device for complete protection from needle injury.
- Specially designed beveled back cut needle offers lower penetration force which is less painful to the patient.
- Transparent flashback chamber for conformation of vein penetration.
- Specially made up of European catheter and Japanese needles, offer less penetration force.
- Complete body and needle hub are colored for easy identification.
- Complete body and needle hub are colored for easy identification.
- Master carton dimension: 67×32×21.2 cm
- Packing: 50/500pcs per inner/Master Carton
ALSO VARIANTS AVAILABLE IN:
- PTFE/FEP/PUR/TPU Catheter
- With radiopaque lines/ Without radiopaque lines
- Hydrophobic filter
- Medical grade paper/ Tyvek paper
- Different catheter length (14G-26G)
- Broad blister packing.
- “Intraveno Safe”.
Size | Color Code | Ext. Dia. mm | Catheter Lenght mm | Flow Rate mi./min | Packing Inner/Outer unit |
---|---|---|---|---|---|
14G | Orange | 2.1 | 45 | 300 | 100/1000 |
16G | Grey | 1.7 | 45 | 200 | 100/1000 |
17G | White | 1.5 | 45 | 140 | 100/1000 |
18G | Green | 1.3 | 45 | 95 | 100/1000 |
20G | Pink | 1.1 | 32 | 62 | 100/1000 |
22G | Blue | 0.9 | 25 | 33 | 100/1000 |
24G | Yellow | 0.7 | 19 | 20 | 100/1000 |
26G | Voilet | 0.6 | 19 | 15 | 100/1000 |
