MAISWIN

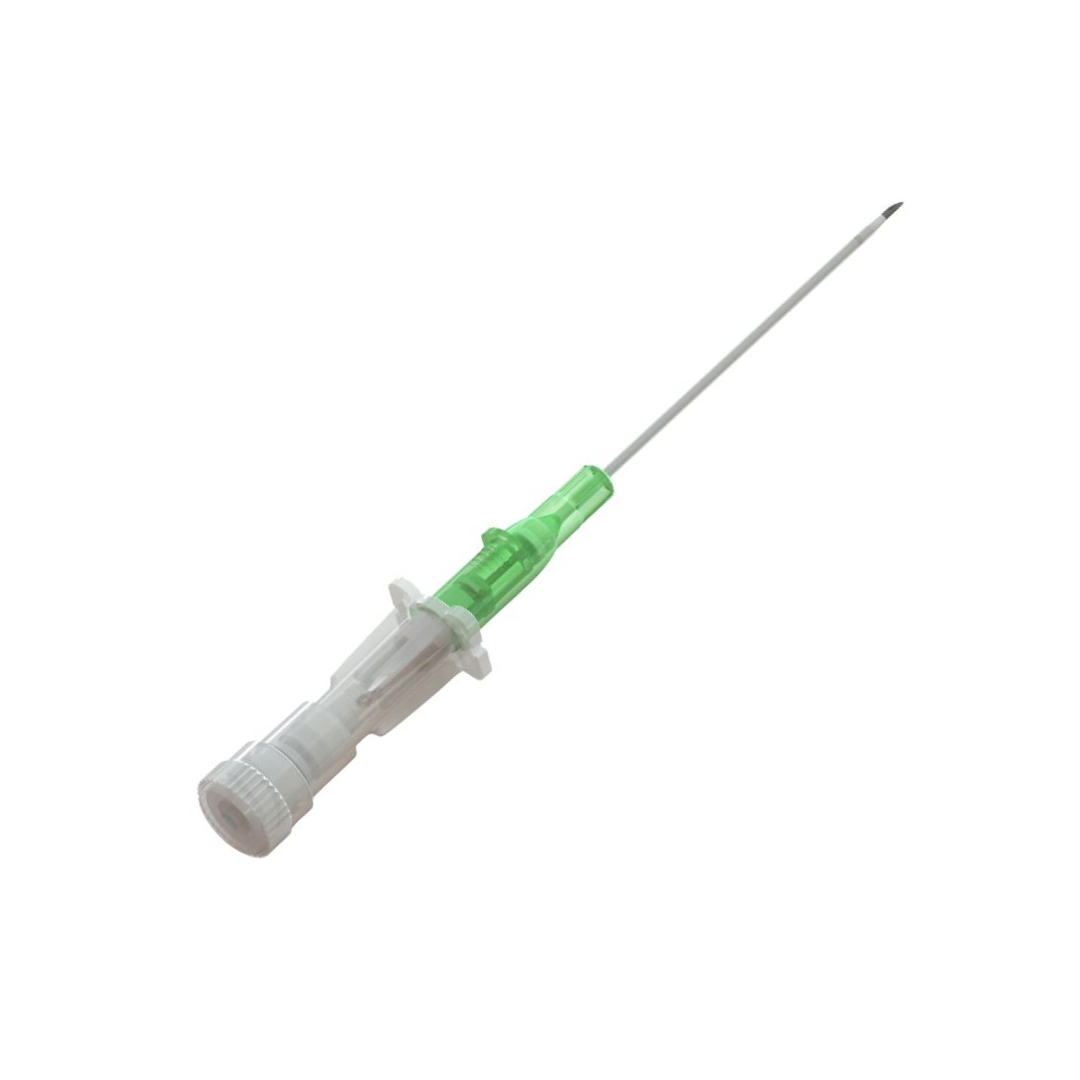

IV CANNULA WITHOUT INJECTION PORT AND WINGS

Product Code : I01613XXXX*

Maiswin I.V. Cannula without injection port & wings has been designed to prevent exposure from additional opening in the catheter.

TECHNICAL FEATURES:

  • Specially designed beveled back cut needle offers lower penetration force which is less painful to the patient.
  • Transparent flashback chamber for conformation of vein penetration.
  • Specially made up of European catheter and Japanese needles, offer less penetration force.
  • Made up of Medical Grade material, tends to long indwelling time.
  • Color coding for size identification.
  • Master carton dimension: 70×29.5×21 cm
  • Packing: 100/1000pcs per inner/Master Carton

ALSO VARIANTS AVAILABLE IN:

  • FEP/PUR/TPU Catheter
  • With radiopaque lines/ Without radiopaque lines
  • Medical grade paper/ Tyvek paper
  • Different catheter length (14G-26G)
  • Broad hard blister packing
Size
Color Code
Ext. Dia. mm
Catheter Lenght mm
Flow Rate mi./min
Packing Inner/Outer unit
14G
Orange
2.1
45
300
100/1000
16G
Grey
1.7
45
200
100/1000
17G
White
1.5
45
140
100/1000
18G
Green
1.3
45
95
100/1000
20G
Pink
1.1
32
62
100/1000
22G
Blue
0.9
25
33
100/1000
24G
Yellow
0.7
19
20
100/1000
26G
Voilet
0.6
19
15
100/1000
