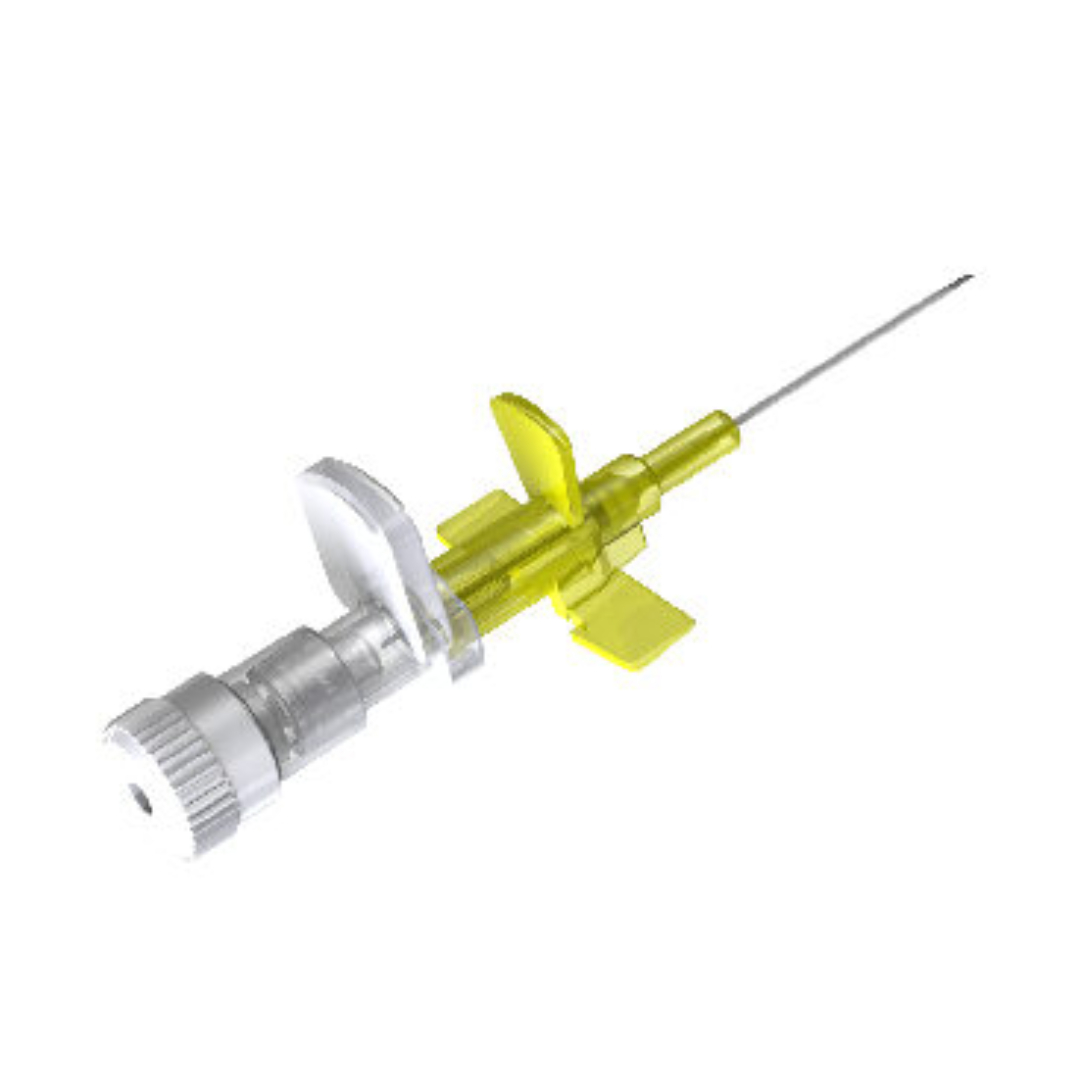

IV CANNULA WITHOUT INJECTION PORT AND WITH SMALL WINGS
Maisneo I.V. Cannula without injection port with small wings for new born babies has been specially designed with projection for low point gap to facilitate better maneuvering. (For pediatric use)
TECHNICAL FEATURES:
- The Small wings & absence of injection port permits easy handling.
- Specially designed beveled back cut needle offers lower penetration force which is less painful to the patient.
- The Main body is designed with projection for low point gap to facilitate better maneuvering.
- Transparent flashback chamber for conformation of vein penetration.
- Specially made up of European catheter and Japanese needles, offer less penetration force.
- Flexible wings for easy fixation.
- Different catheter length (24G & 26G)
- Master carton dimension: 58.5×32.5×20.5 cm
- Packing: 100/1000pcs per inner/Master Carton
ALSO VARIANTS AVAILABLE IN:
- FEP/PUR/TPU Catheter
- With radiopaque lines/ Without radiopaque lines
- Medical grade paper/ Tyvek paper
- Different catheter length (14G-26G)
- Broad hard blister packing
Size | Color Code | Ext. Dia. mm | Catheter Lenght mm | Flow Rate mi./min | Packing Inner/Outer unit |
---|---|---|---|---|---|
14G | Orange | 2.1 | 45 | 300 | 100/1000 |
16G | Grey | 1.7 | 45 | 200 | 100/1000 |
17G | White | 1.5 | 45 | 140 | 100/1000 |
18G | Green | 1.3 | 45 | 95 | 100/1000 |
20G | Pink | 1.1 | 32 | 62 | 100/1000 |
22G | Blue | 0.9 | 25 | 33 | 100/1000 |
24G | Yellow | 0.7 | 19 | 20 | 100/1000 |
26G | Voilet | 0.6 | 19 | 15 | 100/1000 |
